🧠 What Is Caching? (Simple Definition)

Caching means storing data temporarily in a fast place (RAM) so that we don’t repeatedly go to a slow place (database).

Think of it like:

  • Instead of opening the fridge (slow)

  • You keep your favourite drink on your table (fast)

⚡ Why Caching Is Needed?

Without cache:

  • Every request → goes to DB

  • DB becomes slow

  • App becomes slow

  • High load = DB crashes

With cache:

  • Only first request hits DB

  • Next thousands of requests hit cache

  • System becomes super fast

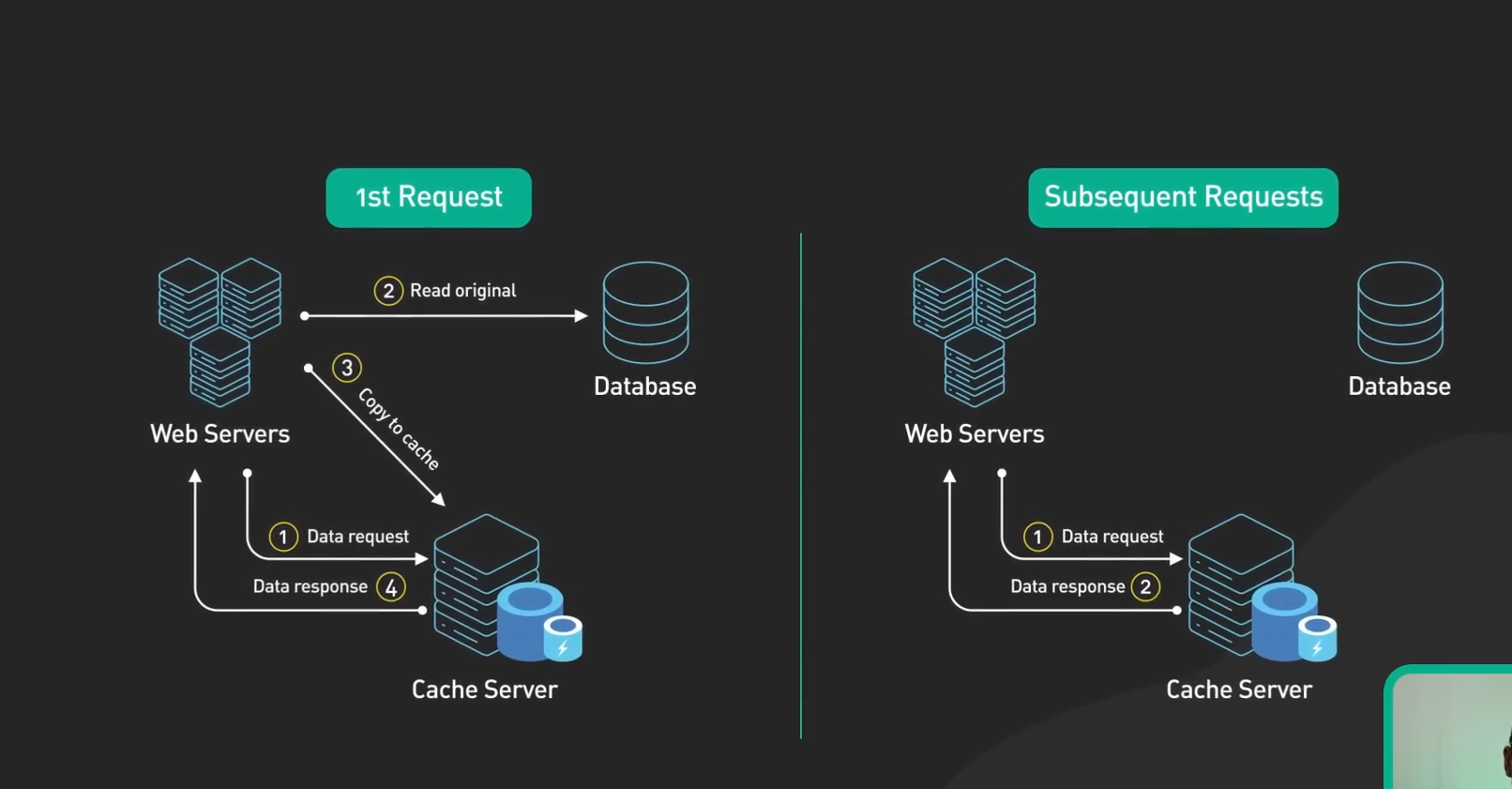

📘 Understanding Your First Diagram — Cache Aside Pattern

This diagram shows one of the MOST COMMON caching strategies:
👉 Cache-Aside (Lazy Loading)

Let's break it down. Cache-Aside Pattern

🟢 1. First Request (Cache MISS)

(Cache MISS = Not found in cache)

🔹 Step-by-step:

Step 1: Web server asks cache → "Do you have this data?"

Cache replies → ❌ No

Step 2: Web server goes to the database

DB returns the actual data → ✔️

Step 3: Web server stores that data into cache

Cache now saves the data in memory → ⚡

Step 4: Web server returns the response to user

🟡 2. Subsequent Requests (Cache HIT)

(Cache HIT = Found in cache)

Now the data is already stored in cache.

🔹 Step-by-step:

Step 1: Web server again asks cache

This time cache replies → ✔️ Yes I have it

Step 2: Cache instantly returns data

Only 1–5 milliseconds → ⚡ SUPER FAST

No database is touched.
No extra load.

🟠 Why This Pattern Is Called “Lazy Loading”?

Because:

  • System does NOT store in cache by default

  • It waits until someone asks for the data the first time

Only when the first request comes → cache is filled.

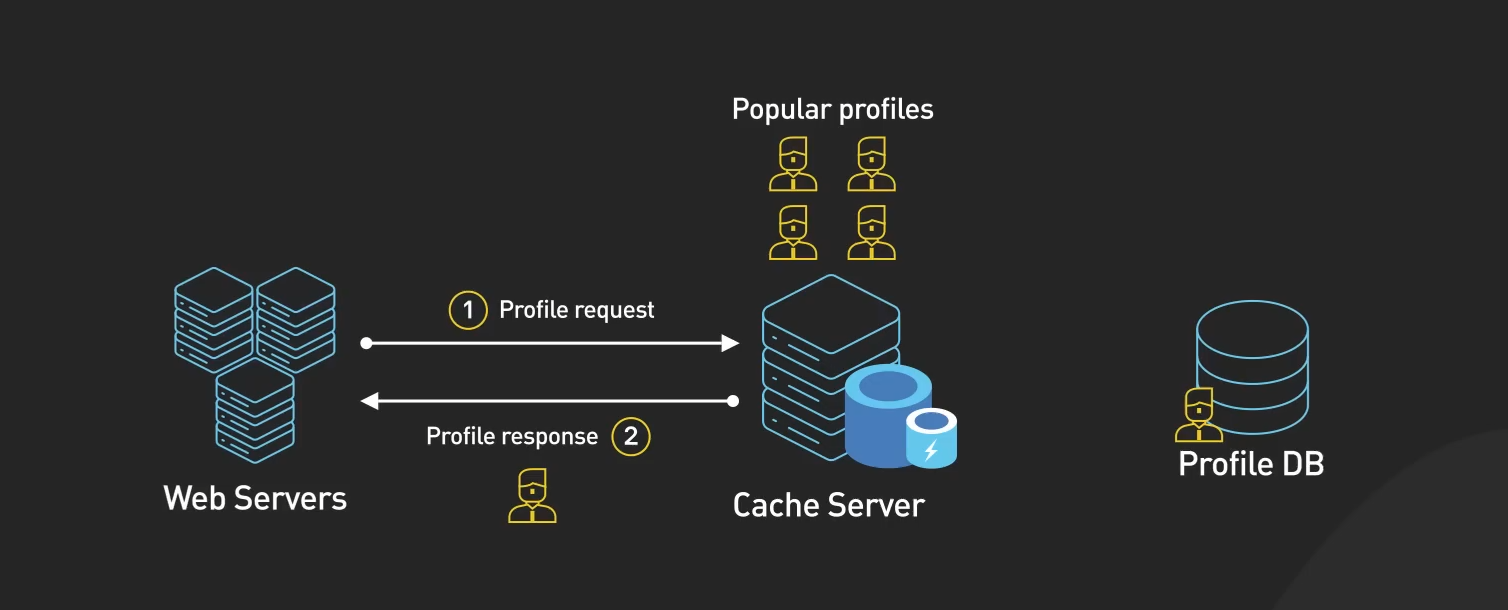

👤 Understanding Your Second Diagram — Popular Profiles Cache

This is an example of using cache for hot data (frequently accessed data). Popular Profiles Cache

Example:

Think of Instagram:

  • Some users have millions of profile visits

  • Their profiles would overload DB

So what Instagram does:

👉 It caches “popular profiles”
👉 All requests for these profiles go directly to cache

📘 Flow in This Diagram

1️⃣ User requests a profile

Web server receives the request

2️⃣ Web server sends request to cache

If profile is popular → it already exists

3️⃣ Cache returns the profile

Super fast → no DB hit

Not for every request

🧰 Why Redis Is Used for Cache?

Redis is perfect for this because:

✔ It stores data in RAM (insanely fast)
✔ Distributed (works across multiple servers)
✔ Supports TTL (auto-expire data)
✔ Good for session storage
✔ Good for rate limiting
✔ Good for real-time counters
✔ Most popular cache tool globally

🏗️ Full Cache Tutorial (Easy to Understand)

1️⃣ When do you use caching?

You use caching when:

  • Database queries are slow

  • Same data is requested frequently

  • External API calls are expensive

  • You have heavy traffic

Examples:

  • Profile info

  • Leaderboards

  • Product pages

  • Blockchain RPC data

  • Dashboard metrics

2️⃣ Where does Redis sit in your architecture?

Client → Backend → Redis Cache → Database

3️⃣ Popular Cache Strategies (explained like a story)

🟢 A. Cache Aside (Lazy Load) — Most used

Already explained using your diagram.

Use when:

  • Read-heavy apps

  • Data doesn’t change frequently

Example:

  • Profile info

  • Product details

🟡 B. Write Through Cache

Write goes to:

  1. Cache

  2. Database

At the same time.

Useful when you want cache + DB always in sync.

🟠 C. Write Back (Write Behind)

Write goes only to cache → Redis writes to DB later.

Fastest writes
But can lose data if cache crashes.

4️⃣ Cache Expiry — TTL

Every cached key can expire automatically.

Example:

SET user:123 {"name": "Yuva"} EX 60

Meaning:

  • Store profile for 60 seconds

  • After that → auto delete

Helps avoid stale data.

5️⃣ Eviction Policies (When Cache Memory Is Full)

Redis will remove:

  • LRU → Least recently used

  • LFU → Least frequently used

  • TTL → Keys with expiry first

  • NOEVICTION → Return error if full

6️⃣ Cache Problems (Simple Explanation)

❌ Cache Miss

Data not found → Goes to DB.

❌ Cache Stampede

When cache expires → thousands of users hit DB at once.

Solution:

  • Staggered TTL

  • Cache locking

  • Background refresh

❌ Stale Data

Cache contains old information.

Solution:

  • Short TTL

  • Invalidate when updating

🪄 Real-World Example (Sui Network Monitoring)

When you track:

  • Epoch

  • Checkpoints

  • Transaction count

  • Validator count

  • Gas price

Instead of calling RPC every second:

👉 Store values in Redis for 5–10 seconds
👉 All dashboards read from Redis
👉 Backend becomes lightning fast
👉 RPC node is safe from heavy load

🧩 Summary (Very Simple)

✔ Cache = fast memory

✔ Redis = the most powerful caching tool

✔ Cache Aside = most common approach

✔ First request → DB

✔ Next requests → Redis

✔ Fewer DB hits = faster system

✔ Great for dashboards, profiles, blockchain data
