Deployment Strategies¶
Essential deployment patterns for zero-downtime releases and safe production updates
Overview¶
A deployment strategy is a plan for how to release and update software carefully to avoid problems for users. Choosing the right strategy depends on your application requirements, downtime tolerance, and rollback needs.
Video Tutorial: Deployment Strategies Explained
What is Deployment? 🚀¶
Deployment means releasing or upgrading software so that users can access it. In modern DevOps, deployments should be: - Automated - Minimal manual intervention - Repeatable - Consistent across environments - Safe - Minimize risk to production - Fast - Quick rollout and rollback
Deployment Strategies Overview¶
Quick Comparison¶
| Strategy | Downtime | Rollback Speed | Resource Cost | Complexity | Risk |
|---|---|---|---|---|---|
| Recreate | Yes | Fast | Low | Low | High |
| Rolling Update | No | Medium | Low | Low | Medium |
| Blue-Green | No | Instant | High (2x) | Medium | Low |
| Canary | No | Fast | Medium | High | Low |
| A/B Testing | No | Fast | Medium | High | Low |

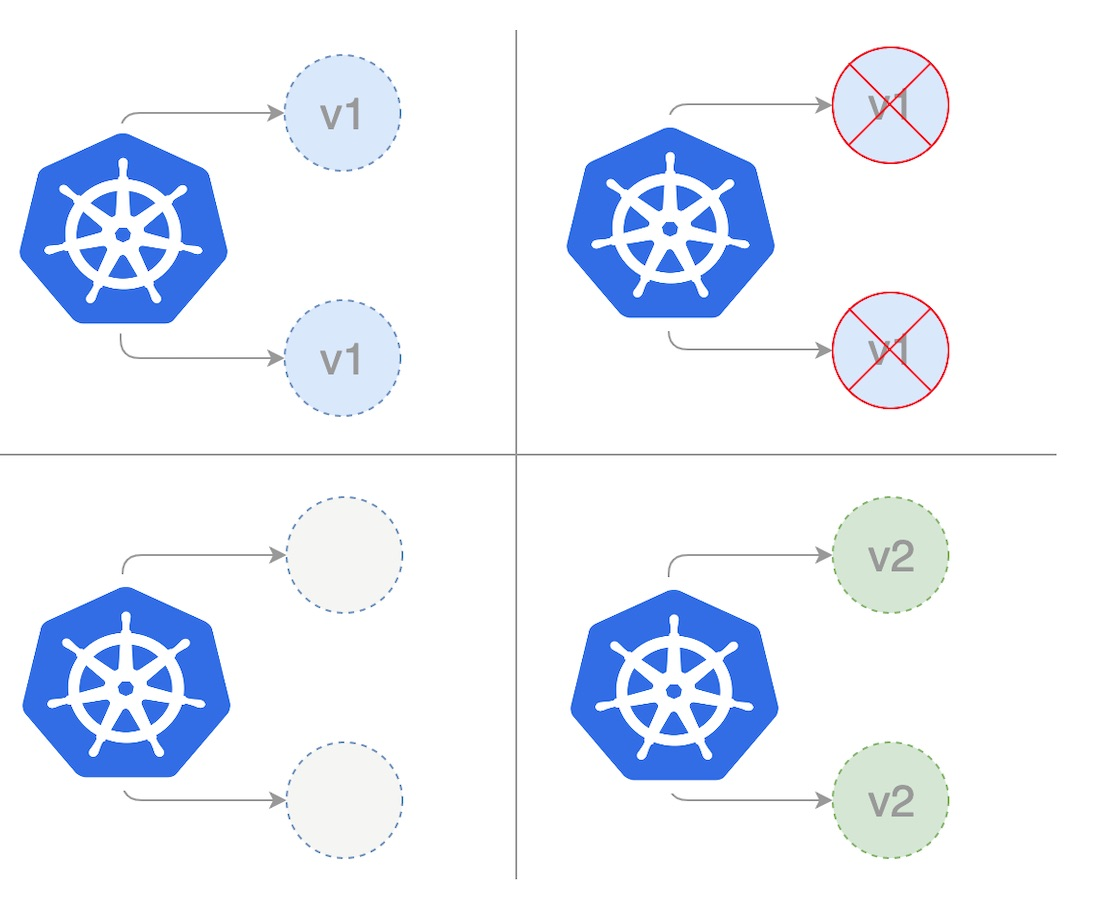

1. Recreate Strategy 🔁¶
Definition¶
All old instances are terminated at once, then new instances are created with the updated version.
Architecture Diagram¶
Before Deployment:
┌─────────┐ ┌─────────┐ ┌─────────┐
│ v1.0 │ │ v1.0 │ │ v1.0 │
│ Running │ │ Running │ │ Running │
└─────────┘ └─────────┘ └─────────┘
During Deployment (Downtime):
┌─────────┐ ┌─────────┐ ┌─────────┐
│ Stopped │ │ Stopped │ │ Stopped │
└─────────┘ └─────────┘ └─────────┘
After Deployment:
┌─────────┐ ┌─────────┐ ┌─────────┐
│ v2.0 │ │ v2.0 │ │ v2.0 │
│ Running │ │ Running │ │ Running │
└─────────┘ └─────────┘ └─────────┘
Workflow¶
- Stop all v1.0 instances - Application becomes unavailable
- Wait for cleanup - Ensure all connections closed
- Deploy v2.0 instances - Start new version
- Health checks pass - Application available again
Pros¶
✅ Simple and straightforward
✅ Ensures all instances run the same version
✅ No version compatibility issues
✅ Clean state transition
Cons¶
❌ Downtime during transition
❌ All users affected simultaneously
❌ No gradual rollout
❌ Risky for critical applications
When to Use¶
- Development/staging environments
- Applications with short startup time
- Stateless applications
- Maintenance windows acceptable
- Non-critical services
Kubernetes Implementation¶
apiVersion: apps/v1
kind: Deployment
metadata:
name: myapp-deployment
labels:
app: myapp
spec:
replicas: 3
selector:
matchLabels:
app: myapp
strategy:
type: Recreate # All pods terminated before new ones created
template:
metadata:
labels:
app: myapp
spec:
containers:
- name: myapp
image: myapp:v2.0
ports:
- containerPort: 8080
resources:
requests:
memory: "256Mi"
cpu: "250m"
limits:
memory: "512Mi"
cpu: "500m"
Deploy:

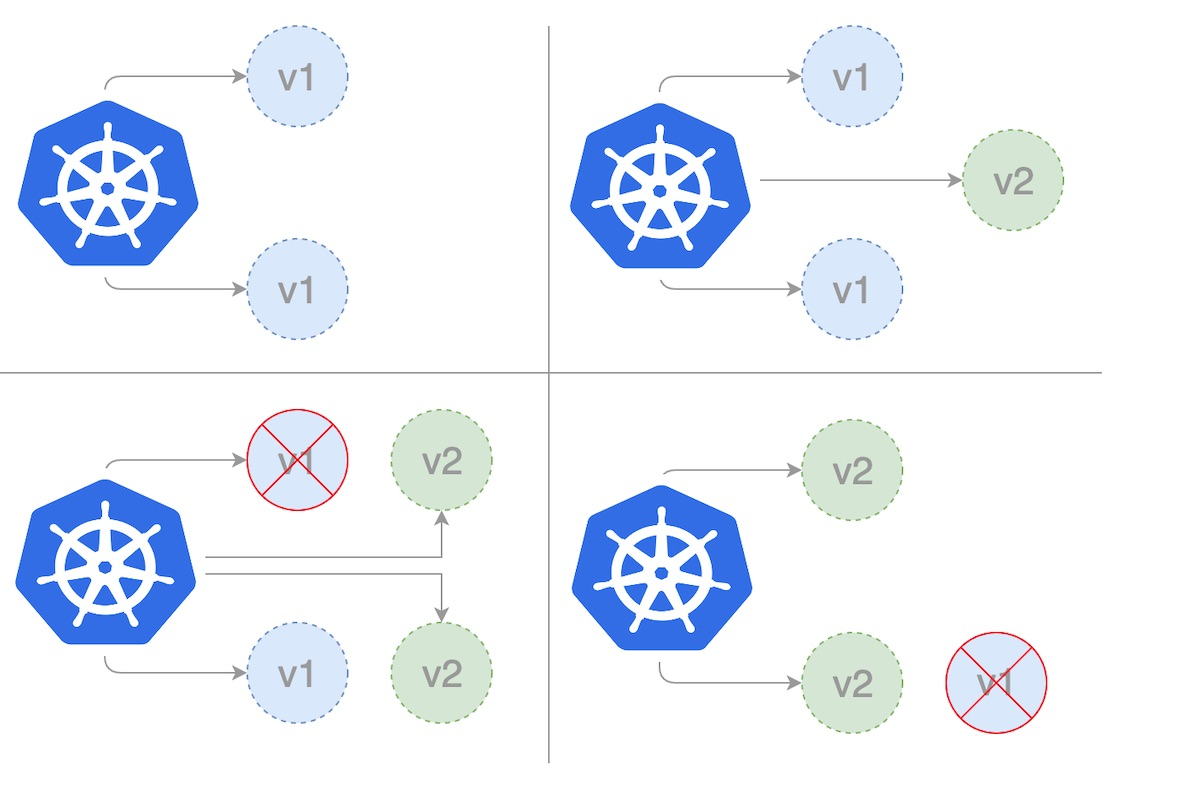

2. Rolling Update Strategy 🔄¶
Definition¶
New instances are gradually created while old instances are gradually terminated, ensuring continuous availability.
Architecture Diagram¶
Initial State:
┌─────────┐ ┌─────────┐ ┌─────────┐
│ v1.0 │ │ v1.0 │ │ v1.0 │
│ Running │ │ Running │ │ Running │
└─────────┘ └─────────┘ └─────────┘
Step 1:
┌─────────┐ ┌─────────┐ ┌─────────┐
│ v1.0 │ │ v1.0 │ │ v2.0 │
│ Running │ │ Running │ │ Starting│
└─────────┘ └─────────┘ └─────────┘
Step 2:
┌─────────┐ ┌─────────┐ ┌─────────┐
│ v1.0 │ │ v2.0 │ │ v2.0 │
│ Running │ │ Running │ │ Running │
└─────────┘ └─────────┘ └─────────┘
Final State:
┌─────────┐ ┌─────────┐ ┌─────────┐
│ v2.0 │ │ v2.0 │ │ v2.0 │
│ Running │ │ Running │ │ Running │
└─────────┘ └─────────┘ └─────────┘
Workflow¶
- Create new v2.0 instance - Start one new pod
- Health check passes - Verify new pod is healthy
- Terminate one v1.0 instance - Remove old pod
- Repeat - Continue until all pods updated
Pros¶
✅ Zero downtime deployment
✅ Easy to roll back
✅ Gradual transition
✅ Default Kubernetes strategy
✅ Resource efficient
Cons¶
❌ Longer deployment time
❌ Both versions running simultaneously
❌ Requires version compatibility
❌ Complex state management
When to Use¶
- Production applications requiring zero downtime
- Applications that can handle multiple versions
- Standard web applications
- Microservices
- Most common use case
Kubernetes Implementation¶
apiVersion: apps/v1
kind: Deployment
metadata:
name: myapp-deployment
spec:
replicas: 5
selector:
matchLabels:
app: myapp
strategy:
type: RollingUpdate
rollingUpdate:
maxUnavailable: 1 # Max pods unavailable during update
maxSurge: 1 # Max extra pods during update
template:
metadata:
labels:
app: myapp
spec:
containers:
- name: myapp
image: myapp:v2.0
ports:
- containerPort: 8080
livenessProbe:
httpGet:
path: /health
port: 8080
initialDelaySeconds: 30
periodSeconds: 10
readinessProbe:
httpGet:
path: /ready
port: 8080
initialDelaySeconds: 5
periodSeconds: 5
Deploy and Monitor:
# Apply deployment
kubectl apply -f rolling-update-deployment.yaml
# Watch rollout
kubectl rollout status deployment/myapp-deployment
# Pause rollout if issues detected
kubectl rollout pause deployment/myapp-deployment
# Resume rollout
kubectl rollout resume deployment/myapp-deployment
# Rollback to previous version
kubectl rollout undo deployment/myapp-deployment

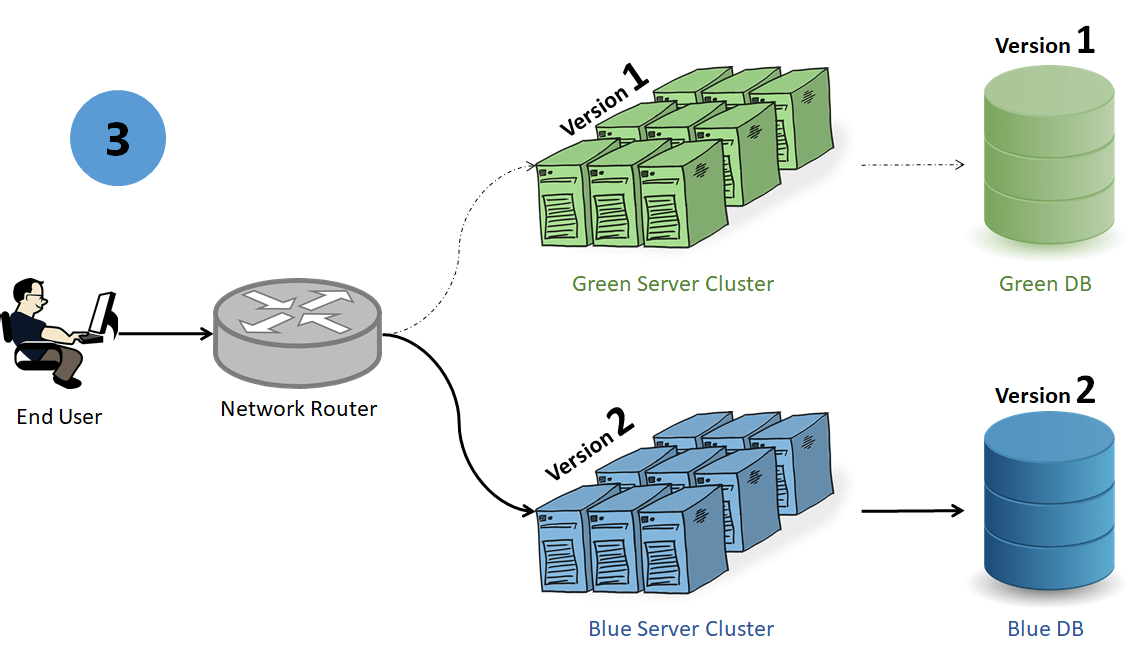

3. Blue-Green Deployment 🟦🟩¶
Definition¶
Two identical production environments (Blue and Green) run simultaneously. Only one is active at any time. Traffic is switched instantly from one to the other.
Architecture Diagram¶
Initial State (Blue Active):
┌──────────────┐
│ Load Balancer│
│ (→ Blue) │
└──────┬───────┘
│
┌──────────────────┼──────────────────┐
│ │ │
▼ ▼ ▼
┌───────┐ ┌───────┐ ┌───────┐
│ Blue │ │ Blue │ │ Blue │
│ v1.0 │ │ v1.0 │ │ v1.0 │
│Active │ │Active │ │Active │
└───────┘ └───────┘ └───────┘
┌───────┐ ┌───────┐ ┌───────┐
│ Green │ │ Green │ │ Green │
│ v2.0 │ │ v2.0 │ │ v2.0 │
│Standby│ │Standby│ │Standby│
└───────┘ └───────┘ └───────┘
After Switch (Green Active):
┌──────────────┐
│ Load Balancer│
│ (→ Green) │
└──────┬───────┘
│
┌──────────────────┼──────────────────┐
│ │ │
▼ ▼ ▼
┌───────┐ ┌───────┐ ┌───────┐
│ Blue │ │ Blue │ │ Blue │
│ v1.0 │ │ v1.0 │ │ v1.0 │
│Standby│ │Standby│ │Standby│
└───────┘ └───────┘ └───────┘
┌───────┐ ┌───────┐ ┌───────┐
│ Green │ │ Green │ │ Green │
│ v2.0 │ │ v2.0 │ │ v2.0 │
│Active │ │Active │ │Active │
└───────┘ └───────┘ └───────┘
Workflow¶
- Blue environment active - Serving production traffic (v1.0)
- Deploy to Green - Update Green environment to v2.0
- Test Green - Verify Green environment works correctly
- Switch traffic - Update load balancer to point to Green
- Monitor - Watch for issues
- Keep Blue - Blue remains as instant rollback option
Pros¶
✅ Zero downtime deployment
✅ Instant rollback (switch back to Blue)
✅ Full testing before switch
✅ Clean separation of versions
✅ Easy to understand
Cons¶
❌ Requires double resources (2x cost)
❌ Database migrations complex
❌ Stateful applications challenging
❌ Need to maintain two environments
When to Use¶
- Critical production applications
- Need instant rollback capability
- Can afford double resources
- Stateless applications
- High-risk deployments
Kubernetes Implementation¶
# Service (switches between blue and green)
apiVersion: v1
kind: Service
metadata:
name: myapp-service
spec:
selector:
app: myapp
version: blue # Change to 'green' to switch
ports:
- protocol: TCP
port: 80
targetPort: 8080
type: LoadBalancer
---
# Blue Deployment (v1.0)
apiVersion: apps/v1
kind: Deployment
metadata:
name: myapp-blue
spec:
replicas: 3
selector:
matchLabels:
app: myapp
version: blue
template:
metadata:
labels:
app: myapp
version: blue
spec:
containers:
- name: myapp
image: myapp:v1.0
ports:
- containerPort: 8080
---
# Green Deployment (v2.0)
apiVersion: apps/v1
kind: Deployment
metadata:
name: myapp-green
spec:
replicas: 3
selector:
matchLabels:
app: myapp
version: green
template:
metadata:
labels:
app: myapp
version: green
spec:
containers:
- name: myapp
image: myapp:v2.0
ports:
- containerPort: 8080
Switch Traffic:
# Deploy both environments
kubectl apply -f blue-green-deployment.yaml
# Test green environment
kubectl port-forward deployment/myapp-green 8080:8080
# Switch to green
kubectl patch service myapp-service -p '{"spec":{"selector":{"version":"green"}}}'
# Rollback to blue if needed
kubectl patch service myapp-service -p '{"spec":{"selector":{"version":"blue"}}}'

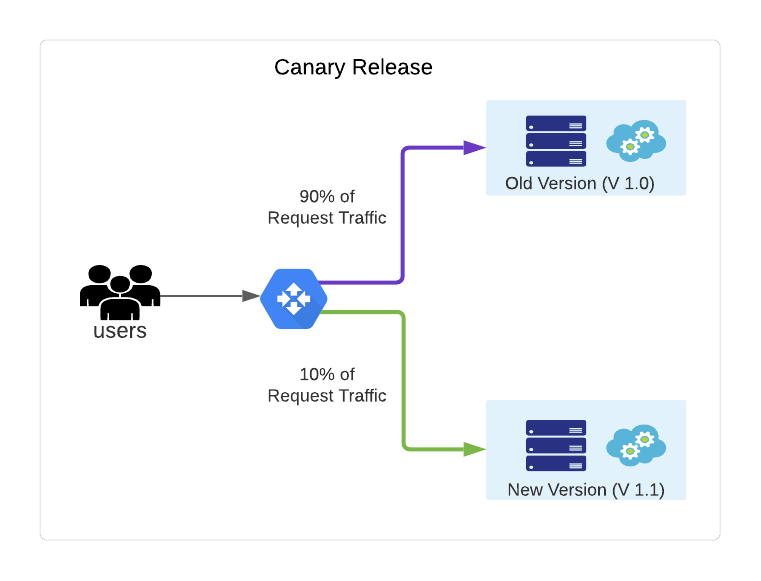

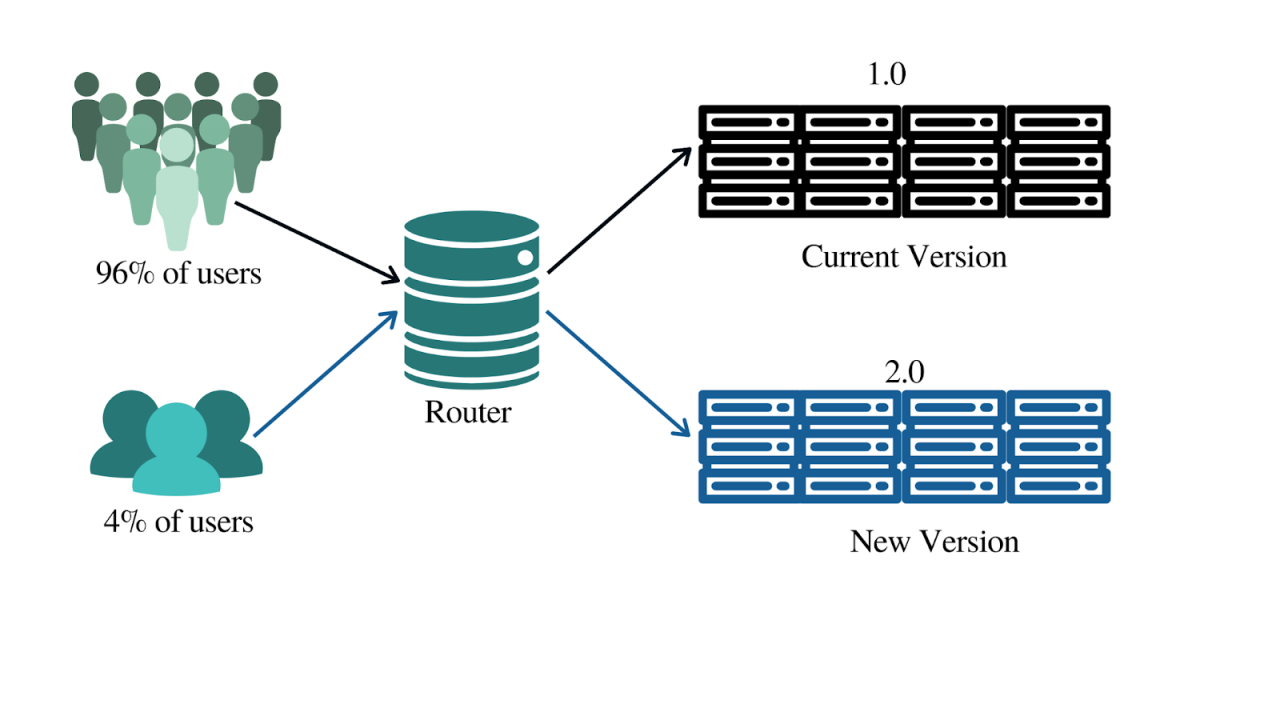

4. Canary Deployment 🐤¶
Definition¶
New version is rolled out to a small subset of users first. If successful, gradually increase traffic to new version.
Architecture Diagram¶
Phase 1 (10% Canary):
┌──────────────┐
│ Load Balancer│
└──────┬───────┘
│
┌──────┴──────┐
│ │
90%│ │10%
│ │
┌───────────▼──┐ ┌──▼──────────┐
│ Stable │ │ Canary │
│ v1.0 │ │ v2.0 │
│ (9 pods) │ │ (1 pod) │
└──────────────┘ └─────────────┘
Phase 2 (50% Canary):
┌──────────────┐
│ Load Balancer│
└──────┬───────┘
│
┌──────┴──────┐
│ │
50%│ │50%
│ │
┌───────────▼──┐ ┌──▼──────────┐
│ Stable │ │ Canary │
│ v1.0 │ │ v2.0 │
│ (5 pods) │ │ (5 pods) │
└──────────────┘ └─────────────┘
Phase 3 (100% Canary):
┌──────────────┐
│ Load Balancer│
└──────┬───────┘
│
100│
│
┌──────▼──────┐
│ Canary │
│ v2.0 │
│ (10 pods) │
└─────────────┘
Workflow¶
- Deploy canary - Release v2.0 to 10% of users
- Monitor metrics - Watch error rates, latency, user feedback
- Increase traffic - If healthy, increase to 25%, then 50%
- Full rollout - Eventually 100% on v2.0
- Rollback if needed - Revert to v1.0 if issues detected
Pros¶
✅ Risk mitigation with small user subset
✅ Real-world testing before full rollout
✅ Quick issue detection
✅ Gradual rollout control
✅ Easy rollback
Cons¶
❌ Complex traffic routing
❌ Requires monitoring infrastructure
❌ Longer deployment time
❌ Need service mesh or ingress controller
When to Use¶
- High-risk feature releases
- Testing new features with real users
- A/B testing scenarios
- Gradual rollout preferred
- Have monitoring infrastructure
Kubernetes Implementation (with Istio)¶
# VirtualService for traffic splitting
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
name: myapp
spec:
hosts:
- myapp.example.com
http:
- match:
- headers:
user-type:
exact: beta-tester
route:
- destination:
host: myapp
subset: v2
weight: 100
- route:
- destination:
host: myapp
subset: v1
weight: 90 # 90% to stable
- destination:
host: myapp
subset: v2
weight: 10 # 10% to canary
---
# DestinationRule
apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata:
name: myapp
spec:
host: myapp
subsets:
- name: v1
labels:
version: v1
- name: v2
labels:
version: v2
Gradual Rollout:
# Phase 1: 10% canary
kubectl apply -f canary-10-percent.yaml
# Monitor metrics
kubectl logs -f deployment/myapp-v2
# Phase 2: 50% canary
kubectl apply -f canary-50-percent.yaml
# Phase 3: 100% canary
kubectl apply -f canary-100-percent.yaml
# Rollback if needed
kubectl apply -f canary-0-percent.yaml

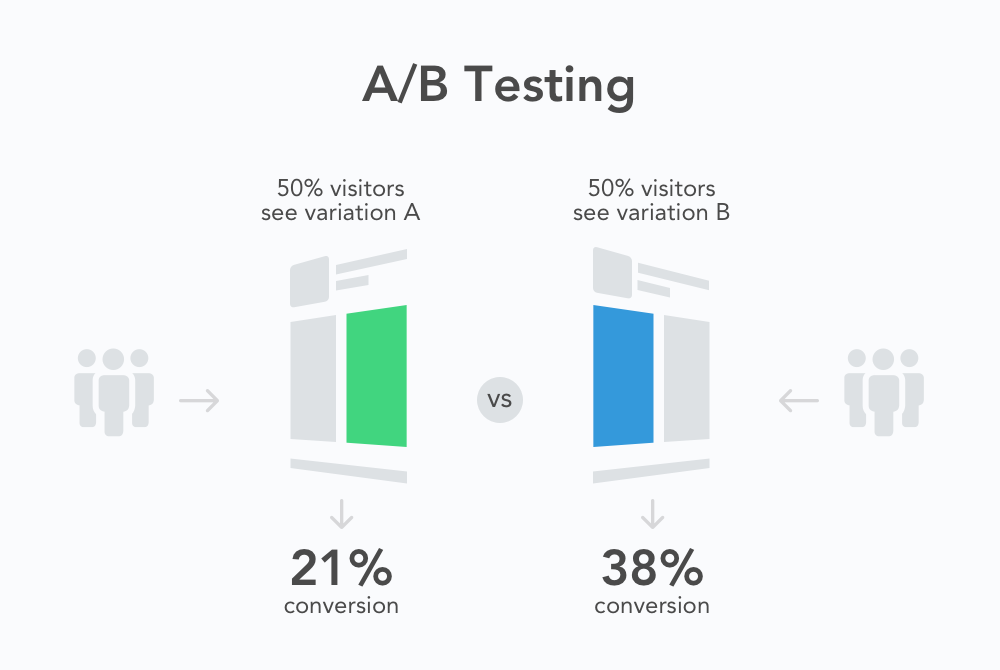

5. A/B Testing Strategy 🅰️🅱️¶
Definition¶
Multiple versions deployed simultaneously. Different users see different versions based on criteria (location, user type, etc.) to compare performance.
Architecture Diagram¶
┌──────────────┐
│ Load Balancer│
│ + Routing │
└──────┬───────┘
│
┌──────────────────┼──────────────────┐
│ │ │
│ US Users │ EU Users │ Beta Users
│ │ │
▼ ▼ ▼
┌───────┐ ┌───────┐ ┌───────┐
│Version│ │Version│ │Version│
│ A │ │ B │ │ C │
│ v1.0 │ │ v2.0 │ │ v3.0 │
└───────┘ └───────┘ └───────┘
│ │ │
└──────────────────┴──────────────────┘
│
┌──────▼───────┐
│ Analytics │
│ Compare │
│ Results │
└──────────────┘
Workflow¶
- Define criteria - User segment, location, device type
- Deploy versions - A and B running simultaneously
- Route traffic - Based on criteria
- Collect metrics - Conversion rate, engagement, performance
- Analyze results - Determine winning version
- Full rollout - Deploy winning version to all users
Pros¶
✅ Data-driven decision making
✅ Compare versions in real-world
✅ Measure user behavior
✅ Test multiple features
✅ Optimize conversion rates
Cons¶
❌ Complex routing logic
❌ Requires analytics infrastructure
❌ Multiple versions to maintain
❌ Longer testing period
When to Use¶
- Testing new features
- UI/UX improvements
- Performance optimizations
- Marketing campaigns
- Conversion rate optimization
Implementation (Application Level)¶
# Python Flask example
from flask import Flask, request
import random
app = Flask(__name__)
def get_user_version(user_id):
"""Determine which version user should see"""
# Consistent hashing based on user_id
if hash(user_id) % 2 == 0:
return 'A'
else:
return 'B'
@app.route('/feature')
def feature():
user_id = request.headers.get('User-ID')
version = get_user_version(user_id)
if version == 'A':
# Version A code
return render_template('feature_a.html')
else:
# Version B code
return render_template('feature_b.html')
Kubernetes Implementation (with Istio)¶
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
name: myapp-ab-test
spec:
hosts:
- myapp.example.com
http:
- match:
- headers:
user-location:
exact: "US"
route:
- destination:
host: myapp
subset: version-a
- match:
- headers:
user-location:
exact: "EU"
route:
- destination:
host: myapp
subset: version-b
- route: # Default
- destination:
host: myapp
subset: version-a
weight: 50
- destination:
host: myapp
subset: version-b
weight: 50
Decision Matrix¶
Choose Based on Requirements¶
| Requirement | Recommended Strategy |
|---|---|
| Zero downtime required | Rolling Update, Blue-Green, Canary |
| Instant rollback needed | Blue-Green |
| Limited resources | Rolling Update, Recreate |
| High-risk deployment | Canary, Blue-Green |
| Testing with real users | Canary, A/B Testing |
| Simple deployment | Recreate, Rolling Update |
| Downtime acceptable | Recreate |
| Need metrics comparison | A/B Testing |
| Gradual rollout | Canary, Rolling Update |
| Cost-sensitive | Rolling Update, Recreate |
Best Practices¶
General Guidelines¶
✅ Automate deployments - Use CI/CD pipelines
✅ Health checks - Implement liveness and readiness probes
✅ Monitoring - Track metrics during deployment
✅ Rollback plan - Always have a rollback strategy
✅ Test thoroughly - Test in staging before production
✅ Version control - Tag releases properly
✅ Documentation - Document deployment procedures
Kubernetes Specific¶
✅ Use namespaces - Separate environments
✅ Resource limits - Set CPU/memory limits
✅ ConfigMaps/Secrets - Externalize configuration
✅ Service mesh - Use Istio/Linkerd for advanced routing
✅ GitOps - Use ArgoCD/Flux for declarative deployments
Monitoring¶
✅ Error rates - Track 4xx/5xx errors
✅ Latency - Monitor response times
✅ Throughput - Requests per second
✅ Resource usage - CPU/memory consumption
✅ User metrics - Conversion rates, engagement
Tools & Technologies¶
Kubernetes Native¶
- kubectl - Command-line tool
- Helm - Package manager
- Kustomize - Configuration management
Service Mesh¶
- Istio - Advanced traffic management
- Linkerd - Lightweight service mesh
- Consul - Service discovery and mesh
GitOps¶
- ArgoCD - Declarative GitOps
- Flux - GitOps toolkit
- Jenkins X - CI/CD for Kubernetes
Monitoring¶
- Prometheus - Metrics collection
- Grafana - Visualization
- Datadog - Full-stack monitoring
- New Relic - APM
Related Topics¶
Additional Resources¶
Official Documentation¶
Video Tutorials¶
Tools¶
- Argo Rollouts - Progressive delivery
- Flagger - Progressive delivery operator
- Spinnaker - Multi-cloud deployment
