Containerization

Containerization Architecture

┌─────────────────────────────────────────────────────────────────────────┐
│              Containers vs Virtual Machines Architecture                │
└─────────────────────────────────────────────────────────────────────────┘

    Virtual Machines                          Containers
    ────────────────                          ──────────

┌──────────────────────┐              ┌──────────────────────┐
│   App A   │   App B  │              │  App A  │  App B     │
├───────────┼──────────┤              ├─────────┼────────────┤
│  Bins/Libs│ Bins/Libs│              │Bins/Libs│ Bins/Libs  │
├───────────┴──────────┤              ├─────────┴────────────┤
│   Guest OS (Linux)   │              │   Docker Engine      │
├──────────────────────┤              ├──────────────────────┤
│   Guest OS (Ubuntu)  │              │   Host OS (Linux)    │
├──────────────────────┤              ├──────────────────────┤
│    Hypervisor (VMware│              │   Infrastructure     │
├──────────────────────┤              └──────────────────────┘
│   Host OS (Linux)    │
├──────────────────────┤              Benefits:
│   Infrastructure     │              ✓ Lightweight (MBs)
└──────────────────────┘              ✓ Fast startup (seconds)
                                      ✓ Efficient resources
Drawbacks:                            ✓ Portable
✗ Heavy (GBs)                         ✓ Consistent environments
✗ Slow startup (minutes)
✗ Resource intensive

Key Concepts:

• Containerization packages applications with their dependencies in isolated environments (containers).
• Containers are lightweight, fast, and resource-efficient compared to virtual machines.
• Docker is the leading tool for creating and managing containers.
• Kubernetes is used for container orchestration across multiple machines.

Benefits:

• Consistent behavior across different environments.
• Efficient use of system resources.
• Fast deployment and scalability.
• Portability across systems.
• Isolation between applications.

---

DOCKER

Key Concepts:

• Docker Containers: Isolated environments packaging applications.
• Images: Templates for creating containers.
• Dockerfile: Defines how to build an image.
• Docker Hub: Repository for storing and sharing images.
• Docker Compose: Tool to manage multi-container applications with a single configuration file.
• Docker Network: Connects containers, allowing them to communicate securely.
• Docker Volume: persistent storage that decouples data from containers, allowing for data sharing and reuse.

Benefits:

• Portability: Consistent behavior across environments.
• Efficiency: Lightweight with minimal overhead.
• Networking: Easily link containers for secure communication.
• Multi-Service Setup: Docker Compose simplifies multi-container apps.
• Rapid Deployment: Fast startup and scaling with minimal resources.

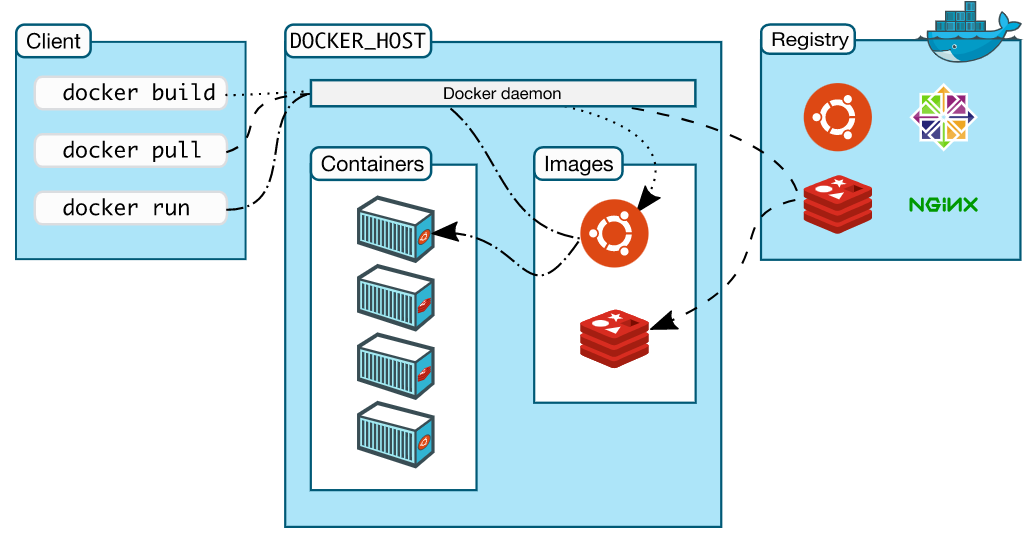

Docker Architecture (Client-Server Model):

• Docker Client: Sends commands to the Docker daemon via the Docker API.
• Docker Daemon (dockerd): Manages images, containers, networks, and volumes; communicates with other daemons.
• Docker Registries: Store Docker images (e.g., Docker Hub, private registries).

Client and daemon communicate via UNIX sockets or network interfaces using REST API, allowing efficient management of containers across different environments.

---

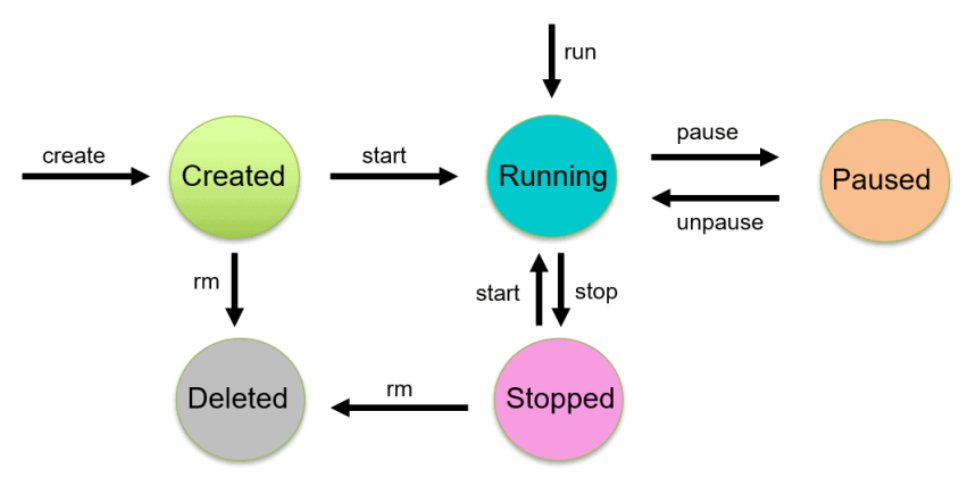

Life cycle:

• Created State: The container has been created but has not started yet.
  • docker create --name <name-of-container> <docker-image-name>
  • docker create --name test nginx
• Running State: The container is actively running and executing processes.
  • docker run <container-id>
  • docker run <container-name>
• Paused State: The container is temporarily suspended, stopping its processes, but can be resumed (unpaused).
  • docker pause container <container-id or container-name>
• Unpaused State: The container resumes running after being paused.
  • docker unpause <container-id or container-name>
• Stopped State: The container has been halted, and its processes have stopped, but it still exists.
  • docker stop <container-id or container-name>
• Killed/Deleted State: The container has been forcefully terminated or deleted, removing its processes and data.
  • docker kill <container-id or container-name>

---

Common Docker Commands

Exploring Docker Information:

• Show Docker information:

  docker info


Managing Containers:

• List all containers (stopped and running):

  docker ps -a


  • a, -all: Show all containers.

Managing Images:

• List all images:

  docker images


• List only image IDs:

  docker images -q


• List images with SHA values:

  docker images --digests


Creating and Running Containers:

• Check available options for **run** command:

  docker run --help


• Run a container (interactive, terminal, detached):

  docker run -itd nginx


  • i: Interactive mode.
  • t: Allocate a terminal.
  • d: Run in detached mode.

To log in (or access) a running container, you can use the docker exec command:

• Login to a Running Container:

  docker exec -it <container_name> /bin/bash


  If the container uses sh instead of bash, you can use:

  docker exec -it <container_name> /bin/sh


This opens an interactive terminal session inside the running container.

• Build an Image from a Dockerfile:

  docker build -t <image_name:tag> .


• Tag an Image:

  docker tag <image_id> <repository/image:tag>


• Remove an Image:

  docker rmi <image_name:tag>


• View Container Logs:

  docker logs <container_name>


• Check Container Stats (CPU, Memory):

  docker stats


• Inspect a Container or Image (for detailed metadata):

  docker inspect <container_name_or_image>


• List running containers:

  docker ps


• List running, exited, or stopped containers:

  docker ps -a


• Login:

  docker login


• Logout:

  docker logout


• Push an Image:

  docker push <repository/image:tag>


• Pull an Image:

  docker pull <repository/image:tag>


---

Docker Volumes

Docker volumes are used to persist data generated by and used by Docker containers, storing it outside the container's filesystem.

Key Concepts:

• Data Persistence: Data remains intact even if the container is stopped or removed.
• Isolation: Keeps data separate from the container, preventing data loss.
• Performance: Better I/O performance compared to the container's writable layer.
• Sharing: Allows multiple containers to share the same data.

Common Commands:

• Create a Volume:

  docker volume create <volume_name>


• List Volumes:

  docker volume ls


• Inspect a Volume:

  docker volume inspect <volume_name>


• Remove a Volume:

  docker volume rm <volume_name>


• Use a Volume in a Container:

  docker run -v <volume_name>:/path/in/container <image_name>


Benefits:

• Durability: Data remains accessible regardless of the container lifecycle.
• Backup: Easy to back up and migrate volumes.
• Compatibility: Works with various storage drivers.

---

Docker Networking Overview

Docker networking allows containers to communicate with each other and the outside world. Key network drivers include:

1. Bridge: Default, suitable for communication between containers on the same host.
2. Host: Uses the host's network directly, bypassing Docker’s virtual network.
3. Overlay: For multi-host communication in Docker Swarm.
4. None: Isolate the container without network access.
5. Macvlan: Assigns a unique MAC address to each container, making it appear as a physical device on the network.

Common Docker Networking Commands

1. List Networks:

   docker network ls


2. Create a Network:

   docker network create my_network


3. Inspect a Network:

   docker network inspect my_network


4. Run a Container in a Network:

   docker run -d --network my_network my_container


5. Connect/Disconnect a Container from a Network:

   docker network connect/disconnect my_network my_container


6. Remove a Network:

   docker network rm my_network


Bridge Network Example

1. Create a Custom Bridge Network:

   docker network create my_bridge_network


2. Run Two Containers in the Same Bridge Network:

   docker run -d --name container1 --network my_bridge_network nginx
   docker run -d --name container2 --network my_bridge_network busybox sleep 1000


3. Ping Between Containers:
   Inside
   container2, you can ping container1:

   docker exec -it container2 ping container1


Macvlan Network Setup

Macvlan allows containers to appear as physical devices on your network. Each container gets a unique MAC address, which can simplify communication with external networks.

1. Create a Macvlan Network:

   docker network create -d macvlan \\
     --subnet=192.168.1.0/24 \\
     --gateway=192.168.1.1 \\
     -o parent=eth0 my_macvlan_network


   • -subnet: The IP address range for the Macvlan network.
   • -gateway: The gateway address for external communication.
   • o parent=eth0: Specifies the host’s physical network interface (replace eth0 with the correct interface).
   • Run a Container in the Macvlan Network:

   docker run -d --name macvlan_container --network my_macvlan_network busybox sleep 1000


2. Ping the Container from the Host or Other Devices:
   The container will have its own IP on the same subnet as the host, so you can ping it directly:

   ping 192.168.1.x  # Replace with the container's IP


3. Communicating Between Macvlan and Host:
   By default, containers using Macvlan can't communicate with the host. To enable this, set up a Macvlan bridge interface:

   ip link add my_macvlan_br link eth0 type macvlan mode bridge
   ip addr add 192.168.1.100/24 dev my_macvlan_br
   ip link set my_macvlan_br up


   This allows the host and Macvlan containers to communicate.

Host and Overlay Networks

• Host Network (bypasses Docker's network):

  docker run -d --network host nginx


• Overlay Network (multi-host, Swarm mode):

  docker swarm init
  docker network create -d overlay my_overlay_network
  docker service create --name my_service --network my_overlay_network nginx


Best Practices

• Use bridge for internal communication on the same host.
• Use overlay for multi-host communication in Docker Swarm.
• Leverage host for performance-sensitive applications.
• Macvlan is ideal for advanced networking setups where containers need their own MAC address and need to appear as physical devices on the network.

---

Dockerfile Concepts:

A Dockerfile is a script with commands to build a Docker image. Key instructions include:

1. FROM: Specifies the base image.

   FROM ubuntu:20.04


2. RUN: Executes commands during the image build.

   RUN apt-get update && apt-get install -y python3


3. COPY: Copies files from the local system to the image.

   COPY . /app


4. WORKDIR: Sets the working directory for subsequent commands.

   WORKDIR /app


5. CMD: Command to run when the container starts.

   CMD ["python3", "app.py"]


Example Dockerfile

FROM python:3.9-slim
WORKDIR /app
COPY . .
RUN pip install --no-cache-dir -r requirements.txt
EXPOSE 80
CMD ["python", "app.py"]

Instruction	Description	Example
ADD	Adds local or remote files and directories to the image. Can unpack compressed files.	ADD ./localfile.txt /app/
ARG	Defines a variable that users can pass at build-time to the Dockerfile.	ARG VERSION=1.0
CMD	Specifies the default command to run when a container starts. Only one CMD instruction is allowed.	CMD ["npm", "start"]
COPY	Copies files and directories from the source path to the destination path in the image.	COPY ./src /app/src
ENTRYPOINT	Configures a container to run as an executable, cannot be overridden at runtime.	ENTRYPOINT ["python", "app.py"]
ENV	Sets environment variables in the container, accessible at runtime.	ENV NODE_ENV=production
EXPOSE	Documents which ports the container listens on at runtime (informational only).	EXPOSE 80
FROM	Specifies the base image to use for subsequent instructions; the first instruction in a Dockerfile.	FROM node:14
HEALTHCHECK	Tells Docker how to test the container for health.	HEALTHCHECK CMD curl --fail [http://localhost/health](http://localhost/health)
LABEL	Adds metadata to an image (e.g., version, description).	LABEL version="1.0" description="My Docker image"
MAINTAINER	Specifies the author of the image (deprecated; use LABEL instead).	MAINTAINER "Your Name <you@example.com>"
ONBUILD	Adds triggers to an image that execute when the image is used as a base for another build.	ONBUILD RUN echo "This runs on child images"
RUN	Executes commands in a new layer on top of the current image and commits the results.	RUN apt-get update && apt-get install -y python3
SHELL	Allows overriding the default shell used for the shell form of commands.	SHELL ["/bin/bash", "-c"]
STOPSIGNAL	Specifies the system call signal sent to the container to stop it.	STOPSIGNAL SIGKILL
USER	Sets the username or UID to use when running the image.	USER node
VOLUME	Creates a mount point for external volumes from the native host or other containers.	VOLUME ["/data"]
WORKDIR	Sets the working directory for subsequent instructions in the Dockerfile.	WORKDIR /app

Let me know if you need further modifications or additional details!

Multistage Docker Builds

Multistage builds allow you to use multiple FROM statements to create smaller, more efficient images. This is useful for separating build environments from runtime environments.

Example Multistage Dockerfile

# First stage: build the Go app
FROM golang:1.17 AS builder
WORKDIR /app
COPY . .
RUN go build -o myapp .

# Second stage: create a small image
FROM alpine:latest
WORKDIR /root/
COPY --from=builder /app/myapp .
EXPOSE 8080
CMD ["./myapp"]

Summary

• Dockerfile: Automates image creation.
• Multistage Builds: Optimize image size and security by separating build and runtime stages.

---

What is Docker Compose?

Docker Compose is a tool for defining and running multi-container Docker applications using a single docker-compose.yml file. It allows you to manage complex applications with multiple services, networks, and volumes.

Key Concepts

1. Services

A service is a container running a specific application. Each service is defined in the docker-compose.yml file.

2. Versioning

The version key specifies the Compose file format version. Use the latest version to access new features.

3. Networks

Compose automatically creates a network for your services, allowing them to communicate. You can define custom networks if needed.

4. Volumes

Volumes are used for data persistence, allowing you to keep data even when containers stop or are removed. You can mount host directories or named volumes.

Basic Structure of a docker-compose.yml

Here’s a simplified structure of a docker-compose.yml file:

version: '3'  # Compose file version

services:  # Define services
  service_name:
    image: image_name:tag  # Use an existing image
    build: ./path/to/Dockerfile  # Build from a Dockerfile
    ports:
      - "host_port:container_port"  # Port mapping
    volumes:
      - host_path:container_path  # Volume mapping
    environment:  # Set environment variables
      - ENV_VAR_NAME=value
    depends_on:  # Service dependencies
      - another_service_name

Example docker-compose.yml

Here’s a practical example for a Flask web app with a Redis database:

version: '3'

services:
  web:
    build: ./web  # Build context for web service
    ports:
      - "5000:5000"  # Map host port 5000 to container port 5000
    depends_on:
      - redis

  redis:
    image: "redis:alpine"  # Use the official Redis image

Explanation of Example

• web: This service builds from the Dockerfile located in the ./web directory and maps port 5000 on the host to port 5000 in the container.
• redis: This service uses a pre-built Redis image from Docker Hub.

Common Commands

Start Services

To start all services defined in the docker-compose.yml file:

docker compose up  # Run in the foreground
docker compose up -d  # Run in detached mode (background)

Stop Services

To stop and remove all containers defined in the file:

docker compose down

View Logs

To check the logs of running services:

docker compose logs  # Shows logs for all services

Execute Commands in Services

Run commands in a specific service container:

docker compose exec service_name command

Example to open a shell in the web service:

docker compose exec web sh

Managing Multiple Environments

You can manage different environments (like development and production) using multiple YAML files. Use the -f flag to specify which file to use:

docker compose -f docker-compose.dev.yml up

Conclusion

Docker Compose simplifies the management of multi-container applications. By defining services, networks, and volumes in a single file, it enables you to easily start, stop, and manage complex applications with straightforward commands.

---
