CloudTrail

contents page
Event Bridge Integration AWS CloudTrail EventBridge Integration

Overview

AWS CloudTrail provides governance, compliance, and audit capabilities for your AWS account.

  • Enabled by default for all AWS accounts.

  • Tracks API calls and events from various sources:

  • AWS Console
  • AWS SDKs
  • AWS CLI
  • IAM Users & Roles
  • AWS Services

Log Storage

CloudTrail logs can be stored in: - Amazon S3 – For long-term storage. - CloudWatch Logs – For real-time monitoring and alerting.

Features

  • A history of events and API calls made within your AWS account.
  • Multi-region support: By default, logs from all regions are collected.
  • Can be restricted to a single region if needed.

Use Case

  • Security & Audit: Helps track changes, user activity, and API requests.
  • Troubleshooting: If a resource is deleted in AWS, CloudTrail logs provide insights.

Diagram

CloudTrail Diagram

Event Types

1. Management Events

Operations on AWS resources (logged by default).
- Examples:
- Configuring security (IAM AttachRolePolicy)
- Configuring routing (EC2 CreateSubnet)
- Setting up logging (CloudTrail CreateTrail)
- Read vs. Write Events: Can log separately.

2. Data Events

Not logged by default (high volume).
- Amazon S3: Object-level activity (GetObject, PutObject, DeleteObject)
- AWS Lambda: Function execution (Invoke API)

3. CloudTrail Insights Events

Detects unusual activity in your account.

  • Finds issues like:
  • Incorrect resource provisioning
  • Service limit hits

  • IAM bursts & maintenance gaps

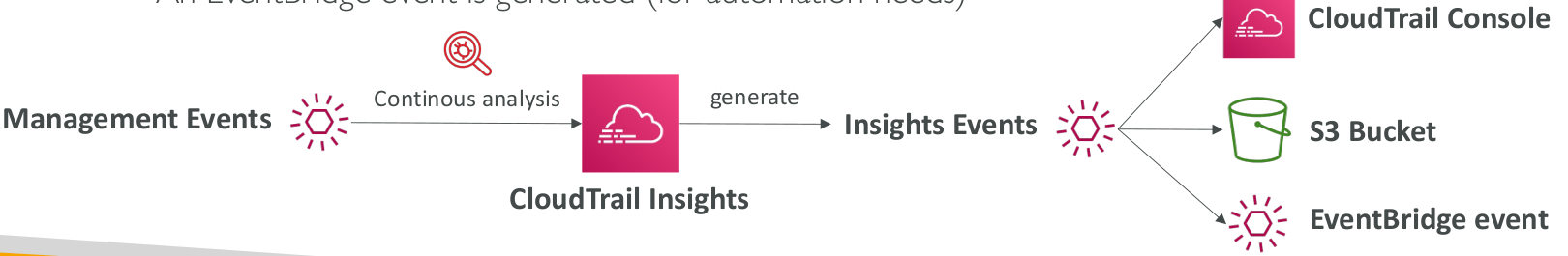

  • How it works:
    CloudTrail Insights

  • Analyzes normal management events to create a baseline
  • Detects anomalies in write events
  • Sends alerts to S3 & EventBridge

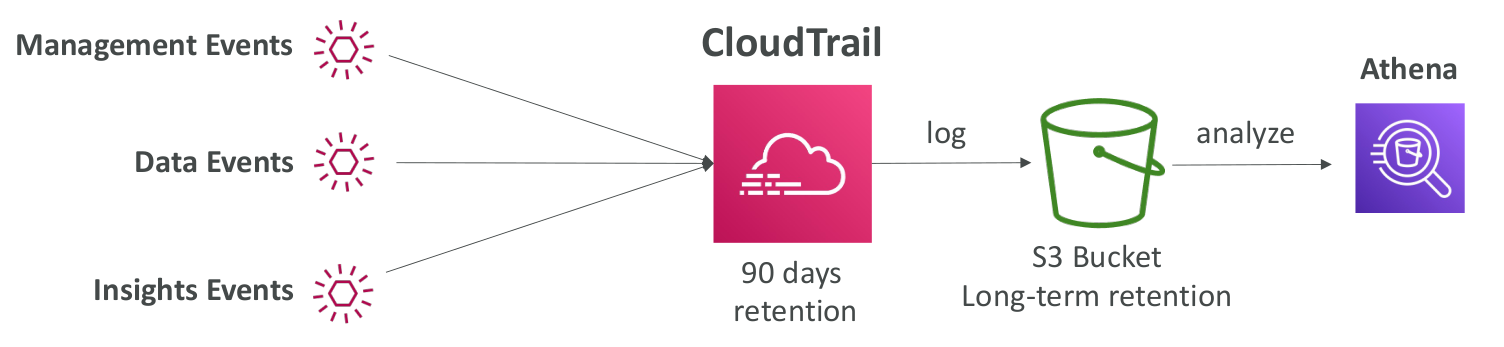

Event Retention

Event Retention - 90-day retention in CloudTrail
- For long-term storage:
- Store logs in Amazon S3
- Analyze with Athena

Log Storage

  • Amazon S3 – Long-term storage
  • CloudWatch Logs – Real-time monitoring

Use Case

If a resource is deleted, check CloudTrail logs first!

CloudTrail Event History - Workflow

➡ User performs an action (e.g., creates an EC2 instance, modifies an IAM policy).
⬇
➡ AWS CloudTrail records the event automatically.
⬇
➡ Event History stores management events for 90 days (accessible via AWS Console, CLI, or API).
⬇
➡ User can filter events based on username, event source, resource, etc.
⬇
➡ If long-term storage is needed:

  • Create a CloudTrail trail to log events to S3.
  • Use Athena for querying historical logs.
