Overview:
AWS Elastic Beanstalk simplifies application deployment and management in the AWS Cloud by handling infrastructure tasks like capacity provisioning, load balancing, scaling, and monitoring. This allows developers to focus on coding without managing underlying AWS services.

Supported Platforms:
Elastic Beanstalk supports applications built with Go, Java, .NET, Node.js, PHP, Python, Ruby, and Docker. Docker allows custom programming languages and dependencies beyond the supported platforms.

Deployment & Management: - Applications can be deployed via the Elastic Beanstalk console, AWS CLI, or the eb CLI. - Users create an application and upload its version, and Elastic Beanstalk automatically provisions AWS resources like EC2 instances.

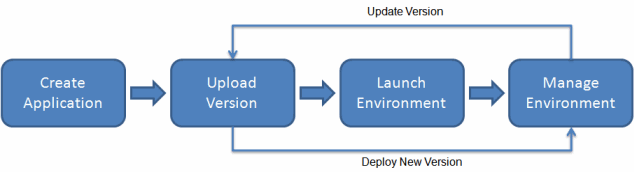

Elastic Beanstalk Overview - Once deployed, application metrics, events, and status updates are available through the console, APIs, and CLI tools.

Pricing:
Elastic Beanstalk itself is free, but users pay for the underlying AWS resources used by their applications.

Next Steps:
For a hands-on experience, refer to the Getting Started with Elastic Beanstalk guide, which explains creating, managing, and deploying applications. Additional resources cover concepts, platform support, and AWS integration.

Concepts

Create

Creating an Application and Environment in AWS Elastic Beanstalk #### Overview

AWS Elastic Beanstalk simplifies application deployment by automatically provisioning and managing AWS resources. This guide walks you through creating an example application and launching an environment.

Steps to Create an Example Application

  1. Open the Elastic Beanstalk Console and choose Create application.
  2. Enter an Application Name (e.g., getting-started-app) and optionally add tags.
  3. Select a Platform for your application and click Next.
  4. Configure Service Access:
    • Choose Use an existing service role for the Service Role.
    • Select an EC2 Instance Profile from the dropdown list:
      • If aws-elasticbeanstalk-ec2-role is available, select it.
      • If not, choose the default profile for your environment.
      • If no options appear, create an IAM role for EC2 and refresh the list.
  5. Skip to Review, check all configurations, and click Submit

AWS Resources Created by Elastic Beanstalk

  • EC2 Instance – A virtual machine running your web app.
  • Instance Security Group – Allows HTTP traffic (port 80) from the load balancer.
  • Amazon S3 Bucket – Stores source code, logs, and other artifacts.
  • Amazon CloudWatch Alarms – Monitors load and triggers Auto Scaling.
  • AWS CloudFormation Stack – Manages infrastructure as code.
  • Domain Name – Routes traffic to your app (subdomain.region.elasticbeanstalk.com).

Deployment Process

  • Elastic Beanstalk creates an application (getting-started-app) and an environment (GettingStartedApp-env).
  • It deploys the default Sample Application code.
  • The console tracks progress in the Events tab.
  • When the environment is ready and health checks pass, the application is live.

This process takes about five minutes, after which you can access your web application via the assigned domain.

Explore

Viewing the Environment Overview in AWS Elastic Beanstalk

### Steps to Access the Environment Overview 1. Open the Elastic Beanstalk Console. 2. Select Your AWS Region from the Regions list. 3. In the navigation pane, choose Environments. 4. Select Your Environment from the list. - Use the search bar if you have multiple environments.

Key Information on the Environment Overview Page

  • Top-Level Details:
    • Environment name
    • Domain URL (application’s web address)
    • Health status
    • Currently deployed application version
    • Platform version running the application
  • Recent Activity & Status:
    • The Events tab logs status updates and errors.
    • When launching resources, the environment status shows as Pending, with continuous updates.
  1. Events – Displays logs from Elastic Beanstalk and related AWS services.
  2. Health – Shows the health status of EC2 instances running the application.
  3. Logs – Retrieve full or recent logs from the EC2 instances (available for 15 minutes).
  4. Monitoring – View performance metrics like CPU usage and latency.
  5. Alarms – Manage alerts based on environment metrics.
  6. Managed Updates – Track upcoming and completed platform updates.
  7. Tags – Manage key-value tags for organizing environments.

The Domain URL is displayed under the Health section—clicking it opens the application. A Go to Environment link is also available in the left pane for quick access.

Deploy New Version

Deploying a New Application Version in AWS Elastic Beanstalk You can deploy a new version of your application at any time, provided no other updates are in progress.

Steps to Update Your Application Version

  1. Download the Appropriate Sample Application

    • Choose the sample application that matches your platform:
      • Docker – docker.zip
      • Multicontainer Docker – docker-multi-container-v2.zip
      • Preconfigured Docker (Glassfish) – docker-glassfish-v1.zip
      • Go – go.zip
      • Corretto – corretto.zip
      • Tomcat – tomcat.zip
      • .NET Core on Linux – dotnet-core-linux.zip
      • .NET Core – dotnet-asp-windows.zip
      • Node.js – nodejs.zip
      • PHP – php.zip
      • Python – python.zip
      • Ruby – ruby.zip

  2. Access the Elastic Beanstalk Console

    • Open the Elastic Beanstalk console.
    • Select your AWS Region.
    • Navigate to Environments and select your environment.
    • Use the search bar if you have multiple environments.

  3. Upload and Deploy the New Version

    • On the Environment Overview page, select Upload and Deploy.
    • Click Choose file and upload the downloaded application source bundle.
    • Elastic Beanstalk automatically generates a unique Version label.
      • If manually entering a label, ensure it is unique.
    • Click Deploy.

  4. Monitor the Deployment Process

    • The deployment status appears on the Environment Overview page.
    • During deployment, the environmental Health status turns gray.
    • Once complete, Elastic Beanstalk performs a health check:
      • If successful, the status changes to green.
      • The new Running Version appears with the assigned Version label.

  5. View Deployed Versions

    • Elastic Beanstalk saves all application versions.
    • To see the version history, go to Application versions under getting-started-app in the navigation pane.

Configure

Modifying Environment Capacity in AWS Elastic Beanstalk You can configure your Elastic Beanstalk environment to use a load-balanced, scalable setup with a minimum of 2 and a maximum of 4 Amazon EC2 instances in its Auto Scaling group. This ensures better responsiveness and availability.

Steps to Change Environment Capacity

  1. Open the Elastic Beanstalk Console

    • Navigate to the AWS Elastic Beanstalk console.
    • Select your AWS Region from the Regions list.

  2. Access Your Environment

    • In the navigation pane, choose Environments.
    • Click on your environment name.
    • Use the search bar if you have multiple environments.

  3. Modify Capacity Settings

    • In the navigation pane, click Configuration.
    • Locate the Instance traffic and scaling configuration category and click Edit.
    • In the Capacity section, change:
      • Environment type → Load balanced
      • Min instances → 2
      • Max instances → 4
    • Click Apply.
    • A warning appears indicating that all instances will be replaced. Click Confirm.

  4. Monitor the Environment Update

    • The Environment Overview page appears.
    • Under the Events tab, wait for the message:
      • "Successfully deployed new configuration to the environment."
    • This confirms that Elastic Beanstalk has set the minimum Auto Scaling instance count to 2 and has launched a second instance.

Verifying the Configuration Change

  1. Check Environment Health
    • In the navigation pane, click Health.
    • Locate the Enhanced instance health section.
    • You should see two Amazon EC2 instances listed, confirming that your capacity has increased.

Clean Up

To completely remove your Elastic Beanstalk application and all related resources, follow these steps:

1. Delete All Application Versions

  1. Open the Elastic Beanstalk Console

    • Navigate to the AWS Elastic Beanstalk console.
    • Select your AWS Region from the Regions list.

  2. Navigate to Application Versions

    • In the navigation pane, choose Applications.
    • Select getting-started-app.
    • Click on Application versions.

  3. Delete the Application Versions

    • Select all the versions you want to delete.
    • Click Actions → Delete.
    • Enable Delete versions from Amazon S3.
    • Click Delete, then Done.

2. Terminate the Environment

  1. Navigate to Environments

    • In the navigation pane, choose getting-started-app.
    • Find GettingStartedApp-env in the environment list.

  2. Terminate the Environment

    • Click Actions → Terminate Environment.
    • Type the environment name (GettingStartedApp-env) to confirm.
    • Click Terminate.

3. Delete the Application

  1. Navigate to Applications

    • In the navigation pane, select getting-started-app.

  2. Delete the Application

    • Click Actions → Delete application.
    • Type getting-started-app to confirm.
    • Click Delete.

There are two types of environments in Elastic Beanstalk:

  • Web Server Environment – Handles HTTP requests and serves web application.
  • Worker Environment – Processes background tasks and jobs asynchronously.

Elastic Beanstalk web server environments

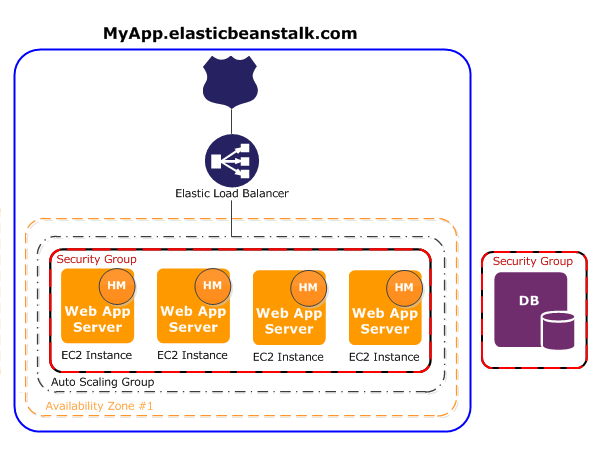

Web Server Tier

Elastic Beanstalk Web Server Tier Architecture Overview

1. Environment & Core Components

  • Environment: The foundation of an Elastic Beanstalk application, responsible for managing AWS resources.
  • AWS Resources Created:
    • Elastic Load Balancer (ELB): Distributes traffic among EC2 instances.
    • Auto Scaling Group: Manages EC2 instances dynamically based on traffic.
    • Amazon EC2 Instances: Compute instances running the application.

2. DNS & Routing with Amazon Route 53

  • Every Elastic Beanstalk environment has a CNAME (URL) like myapp.us-west-2.elasticbeanstalk.com.
  • Amazon Route 53 aliases this to an ELB URL (abcdef-123456.us-west-2.elb.amazonaws.com).
  • If a custom domain is registered, Route 53 can forward requests to the CNAME.

3. Load Balancing & Auto Scaling

  • ELB directs incoming traffic to EC2 instances in the Auto Scaling group.
  • Amazon EC2 Auto Scaling dynamically adjusts the number of instances based on traffic load.

4. Software Stack & Host Manager

  • Each EC2 instance runs a container type (e.g., Apache Tomcat on Amazon Linux).
  • The Host Manager (HM) on EC2 instances is responsible for:
    • Deploying applications.
    • Aggregating events, logs, and metrics.
    • Monitoring logs for critical errors.
    • Patching instance components.
    • Rotating log files and storing them in Amazon S3.

5. Security & Access Control

  • EC2 instances are part of a security group, which defines firewall rules.
  • By default, Elastic Beanstalk allows HTTP access on port 80
  • Additional security groups can be defined (e.g., for a database srver).

This architecture enables scalability, high availability, and efficient application deployment in AWS Elastic Beanstalk. 🚀

Elastic Beanstalk worker environments

Use Case: Background Task Processing with Elastic Beanstalk Worker Tier

Many applications need to handle background tasks that don’t require an immediate response. The worker environment tier in Elastic Beanstalk is ideal for processing such tasks asynchronously.

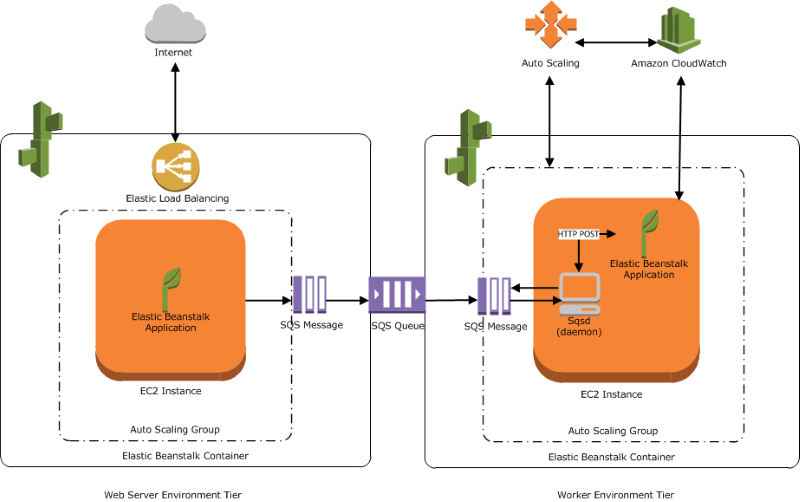

Worker Tier

Example Scenarios

  • Image Processing: A web app uploads images to S3 and queues the processing task in Amazon SQS. A worker instance retrieves the task and resizes the image in the background.
  • Email Notifications: Instead of delaying the user experience, emails are queued and sent later by worker instances.
  • Data Processing: Logs, analytics, or batch jobs are offloaded to a worker environment for efficient processing.

Elastic Beanstalk Worker Tier Architecture Overview

1. AWS Resources Created

When deploying a worker environment tier, Elastic Beanstalk provisions the following AWS resources: - Auto Scaling Group: Ensures scalability by adding or removing EC2 instances based on demand. - Amazon EC2 Instances: Compute resources that process background tasks. - IAM Role: Provides permissions for instances to access AWS services. - Amazon SQS Queue: If not already created, Elastic Beanstalk provisions an SQS queue for message handling.

2. Message Processing with Amazon SQS

  • A daemon is installed on each EC2 instance in the worker environment.
  • The daemon reads messages from the Amazon SQS queue.
  • It forwards message data to the worker application running in the environment for processing.
  • If multiple EC2 instances exist, each one runs its own daemon, but they all pull messages from the same SQS queue.

3. Monitoring & Health Reporting

  • Amazon CloudWatch is used for:
    • Alarms to track critical metrics.
    • Health monitoring to ensure system stability.

By using an Elastic Beanstalk worker environment, applications can efficiently offload non-interactive tasks, reducing the load on the main web application and improving performance. 🚀

Elastic Beanstalk IAM Roles & Permissions Overview

Elastic Beanstalk requires various IAM roles and permissions to manage AWS resources efficiently. This includes service roles, instance profiles, and IAM user policies to ensure secure and automated operations.

1. Service Role (IAM Role for AWS Services)

A service role is an IAM role that an AWS service assumes to perform actions on your behalf. AWS services like Elastic Beanstalk, EC2, Lambda, and RDS use these roles when interacting with other AWS services.

Elastic Beanstalk Service Role Summary

Elastic Beanstalk uses an IAM service role to call AWS services like EC2, Load Balancing, and Auto Scaling on your behalf. Two managed policies are attached:

  1. AWSElasticBeanstalkEnhancedHealth – Provides permissions for monitoring environment health and SQS queue activity in worker environments.

  2. AWSElasticBeanstalkManagedUpdatesCustomerRolePolicy – Grants permissions for managed platform updates, including Elastic Beanstalk actions, role passing, environment monitoring, instance management, ECS, and Auto Scaling operations. These policies ensure Elastic Beanstalk can create, update, and manage environments efficiently.

Example Service Role Policy

{
"Version": "2012-10-17",
"Statement": [
              {
                "Effect": "Allow",
                "Action": [
                           "elasticbeanstalk:*",
                           "ec2:DescribeInstances",
                           "autoscaling:*",
                           "sqs:GetQueueAttributes",
                           "ecs:*"
                          ],
                "Resource": "*"
              }
            ]
}
- This ensures Elastic Beanstalk can fully manage AWS resources required for deployment and scaling.

Elastic Beanstalk Instance Profile

An instance profile is an IAM role assigned to EC2 instances in an Elastic Beanstalk environment. It grants permissions for instances to interact with AWS services securely.

Key Capabilities

With the instance profile, EC2 instances can: - Retrieve & store data in Amazon S3 - Upload debugging data to AWS X-Ray - Manage containers with Amazon ECS (for Docker environments) - Read messages from Amazon SQS and perform leader election with DynamoDB (for worker environments) - Publish health metrics to Amazon CloudWatch

Elastic Beanstalk Managed Policies

Elastic Beanstalk provides predefined managed policies for common use cases: - AWSElasticBeanstalkWebTier – For web applications - AWSElasticBeanstalkWorkerTier – For worker environments - AWSElasticBeanstalkMulticontainerDocker – For Docker-based environments For additional AWS service access, attach extra policies to the instance profile as needed.

Elastic Beanstalk IAM User Best Practices

  • Use individual IAM users for Elastic Beanstalk access instead of the root account.
  • Follow the principle of least privilege—grant only the necessary permissions.

Required Permissions for Elastic Beanstalk Users

Elastic Beanstalk requires IAM permissions to manage various AWS resources, including: - Launching infrastructure – EC2, Load Balancer, Auto Scaling - Managing storage & logs – Amazon S3 - Sending notifications – Amazon SNS - Assigning instance profiles – IAM - Publishing monitoring data – Amazon CloudWatch - Orchestrating deployments – AWS CloudFormation - Managing databases – Amazon RDS - Creating and managing queues – Amazon SQS (for worker environments)

For detailed permission policies, refer to Managing Elastic Beanstalk User Policies in the AWS documentation.

Elastic Beanstalk Platform Overview

Elastic Beanstalk supports multiple platforms to run applications efficiently. A platform consists of an operating system, runtime, web server, application server, and other dependencies required to run applications.

Supported Platform Categories:

  1. Preconfigured Platforms – Managed by AWS, including:
    • Node.js, Python, Ruby, Go, .NET, Java
    • PHP, Docker, and Multicontainer Docker
  2. Custom Platforms – Allows users to define custom AMIs and environments when AWS-managed platforms don’t meet requirements.

Working with Docker on Elastic Beanstalk

Elastic Beanstalk fully supports Docker, allowing you to deploy containerized applications without managing infrastructure. You can use single-container or multi-container environments, depending on complexity.

1. Single-Container Docker

Best for simple applications running a single service inside a container.

How It Works:

  1. Elastic Beanstalk launches an EC2 instance with Docker installed.
  2. It reads the Dockerfile or Dockerrun.aws.json (v1) from the application source.
  3. The container is built and started on the instance.
  4. Elastic Beanstalk handles logging, monitoring, and scaling.

Steps to Deploy:

  • Initialize Elastic Beanstalk: eb init -p docker my-docker-app

  • *Create a Dockerfile (Example for a simple Node.js app): FROM node:18 WORKDIR /app COPY . . RUN npm install CMD ["node", "server.js"]

  • *Deploy the application: eb create my-docker-env

2. Multicontainer Docker

Used for applications requiring multiple services running in separate containers. It uses Amazon ECS (Elastic Container Service) under the hood.

How It Works:

  1. Elastic Beanstalk provisions an EC2 instance with the ECS agent installed.
  2. It reads the Dockerrun.aws.json (v2) file, which defines multiple containers, ports, and links.
  3. ECS manages the containers inside the instance.
  4. Elastic Beanstalk ensures logging, scaling, and health monitoring.

Steps to Deploy:

  • Initialize the environment: eb init -p multi-container-docker my-app

  • Create a* Dockerrun.aws.json file (Example for Nginx + Node.js app):**

{
"AWSEBDockerrunVersion": "2",
"containerDefinitions": [
                          {
                            "name": "nginx",
                            "image": "nginx",
                            "memory": 128,
                            "essential": true,
                            "portMappings": [
                                              { "containerPort": 80,
                                              "hostPort": 80
                                              }
                                            ]
                           },
                           {
                           "name": "node-app",
                           "image": "my-node-app",
                           "memory": 512,
                           "essential": true,
                           "portMappings": [
                                               {
                                               "containerPort": 3000,
                                               "hostPort": 3000
                                               }
                                           ]
                           }
                       ]
}
  • *Deploy the environment: eb create my-multicontainer-env

3. Using Images from a Private Repository

Elastic Beanstalk can pull container images from private registries like Amazon ECR or Docker Hub private repositories.

Steps to Use a Private Image:

  • Authenticate the Instance
    • Store your ECR authentication token in AWS Systems Manager Parameter Store.
    • For Docker Hub, create an auth.json file and configure credentials.
  • Modify Dockerrun.aws.json to specify the private repository:
{
"AWSEBDockerrunVersion": "2",
"containerDefinitions": [
                            {
                            "name": "my-private-app",
            "image":"123456789012.dkr.ecr.useast1.amazonaws.com/myrepo:latest",
                            "memory": 512,
                            "essential": true
                            }
                        ]
}
  1. Ensure the instance role has ECR permissions:
    • Attach AmazonEC2ContainerRegistryReadOnly to the instance profile.

4. Difference Between docker-compose.yml and Dockerrun.aws.json

Feature docker-compose.yml Dockerrun.aws.json
Format YAML JSON
Usage Local Docker & Swarm AWS Elastic Beanstalk
Orchestration Manages multiple containers Uses ECS under the hood
Networking Defines networks for services Uses ECS service linking
Compatibility Works with docker-compose CLI Requires Elastic Beanstalk

Key Takeaway: - Use docker-compose.yml for local testing and development. - Use Dockerrun.aws.json when deploying to Elastic Beanstalk.

5. Using the ECS-Managed Docker Platform in Elastic Beanstalk

Elastic Beanstalk provides an ECS-managed Docker platform that simplifies container orchestration.

Advantages:

✔ Uses Amazon ECS for container scheduling.
✔ Supports AWS Fargate for serverless container management.
✔ Integrated IAM & VPC networking for better security.

How to Use:

  • Select "Preconfigured - ECS-managed Docker" when creating an Elastic Beanstalk environment.
  • Define container settings in Dockerrun.aws.json (v2).
  • Elastic Beanstalk automatically provisions ECS services & tasks.

6. Configuring Elastic Beanstalk Docker Environments

Elastic Beanstalk allows fine-tuned configurations for Docker-based environments using .ebextensions.

Example: Increase Logging Limits

Create .ebextensions/logging.config:

files: "/etc/docker/daemon.json":
mode: "000644"
owner: root
group: root
content: |
            {
            "log-driver": "json-file",
            "log-opts": {
            "max-size": "50m",
            "max-file": "3"
                        }
}

Example: Set Custom Environment Variables

Create .ebextensions/env.config:

option_settings: aws:elasticbeanstalk:application:environment:
APP_ENV: "production"
DATABASE_URL: "postgres://user:password@host/db"

Key Takeaways

✔ Elastic Beanstalk supports single-container and multi-container Docker setups.
✔ Use private repositories for security and ECS-managed platforms for scalability.
✔ Dockerrun.aws.json is Elastic Beanstalk-specific, while docker-compose.yml is for local development.
✔ Use .ebextensions to customize your Docker environment.
